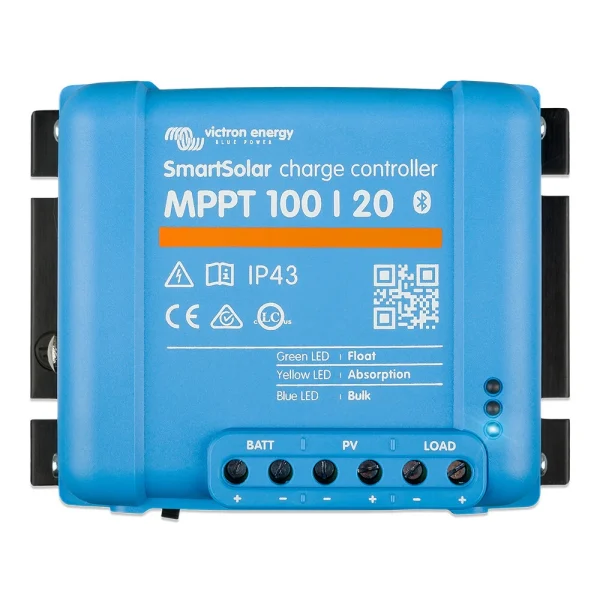

Victron Energy SmartSolar MPPT 100/20 48V Solar Charge Controller
Models: SmartSolar MPPT 100/20 48V IP43
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay).
ULTRA-FAST MAXIMUM POWER POINT TRACKING
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
BLUETOOTH SMART BUILT-IN
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
MPPT 100/20-48V 100 x 113 x 60 mm
3.94 x 4.45 x 2.36 inches
MPPT 100/20-48V 0.65 kg
BlueSolar and SmartSolar Charge Controller MPPT – Overview
SmartSolar MPPT 75/10, 75/15, 100/15, 100/20-48V
VictronConnect – MPPT Solar Charge Controllers (PDF)
SmartSolar MPPT 75/10, 75/15, 100/15, 100/20 & 100/20-48V
