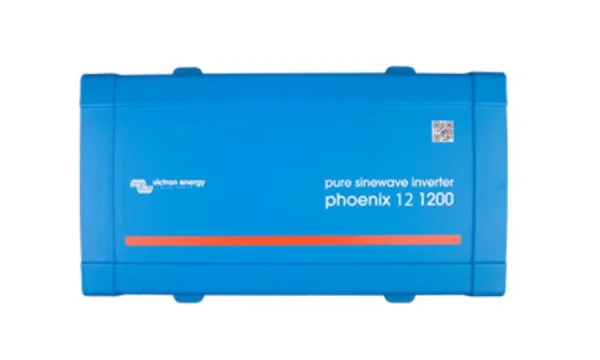

Victron Energy Phoenix VE.Direct 1200VA 12V – Pure Sine Wave Inverter
The Victron Energy Phoenix VE.Direct 1200VA 12V – Pure Sine Wave Inverter offers proven reliability with a full bridge and toroidal transformer design, providing high startup power for LED lamps, tools, and other loads. It’s protected against short circuits and overheating, and features an ECO mode that reduces energy use by switching to standby when the load is below 15W.
PROVEN RELIABILITY
The full bridge plus toroidal transformer topology has proven its reliability over many years.The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
HIGH STARTUP POWER
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO MODE
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds).
| Certifications | CE, EN 55014-1, EN 55014-2, EN 60335-1, RoHS |
|---|---|
| Dimensions | 117 x 232 x 327 mm 4.61 x 9.13 x 12.87 inches |
| Weight | 4 kg, 7 |
| Charger Current (A) | N/A |
| Continuous Power Output (VA) | 1200 VA (at 25°C) |
| Input Voltage (DC) | 12V DC |
| Output Voltage (AC) | 230V AC ±2% (Selectable 50 Hz or 60 Hz) |
| Remote Monitoring | Yes |
| Waveform Type | Pure Sine Wave |
