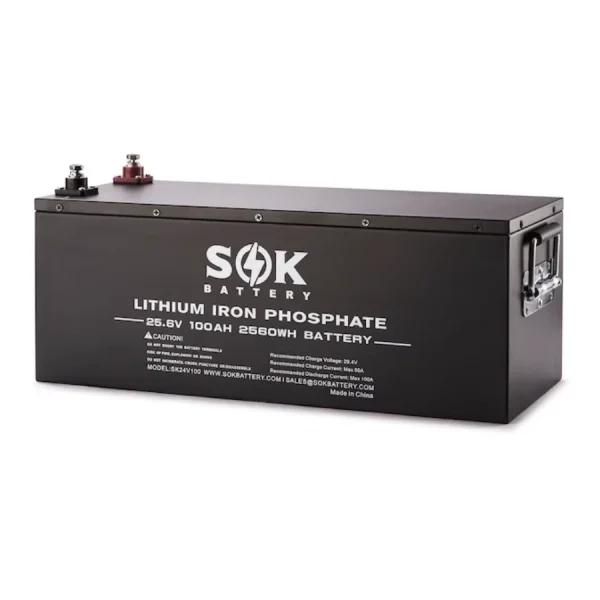

SOK Battery SK24V100 | 24V 100Ah LiFePO4
SK24V100 | 24V 100Ah LiFePO4 Battery delivers reliable power with up to 8000 life cycles and smart Bluetooth-enabled BMS for real-time monitoring and protection. Ideal for 24V or 48V systems, this battery features a detachable cover, replaceable BMS and cells, and full protection against overcharging, low temperature charging, and short circuits. Lightweight and maintenance-free, with support for series and parallel configurations.
- 7 Years Warranty.4000~8000 Cycles Life Span,Free Maintenance.
- Detachable Cover,Replaceable BMS or Cells.
- Connect in series for 48V Battery Bank, or Connect in Parallel for Larger Capacity.
- Built-in Smart Battery Management System.
- Low Temperature Charging Cut-off.
- High Temperature Charging or Discharging Cut-off.
- Over Charging or Discharging Protection.
- Over Current & Short Circuit Protection.
- Battery Cells Auto Balance.
Latest V8 version Bluetooth BMS, top battery cells balance function.
| Bluetooth | Yes (Bluetooth 5.1 monitoring via app) |
|---|---|
| Built-in Heater | Yes (auto-heating for cold-weather charging) |
| CAN Communication | Yes (Compatible with inverters like Victron) |
| Capacity | 100Ah / 2, 560Wh |
| Certifications | IEC62619, UL1973, UL9540A |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 4000–8000 cycles |
| Dimensions | 18.43" x 7.87" x 7.09" (approx. 46.8 x 20 x 18 cm) |
| IP Rating | IP67 (Waterproof and dustproof) |
| Max Charge Current | 70A (recommended 20A) |
| Max Discharge Current | 100A continuous |
| Operating Temperature | Charging: 0°C to 45°C (32°F to 113°F) Discharging: -20°C to 60°C (-4°F to 140°F) |
| Parallel Connection | Up to 10 units |
| Peak Discharge Current | 200A (for 3 seconds) |
| Series Connection | Up to 2 units (to make a 48V system) |
| Voltage | 25.6V nominal |
| Warranty | 7 years |
| Weight | 48–55 lbs (21.8–24.9 kg) |
Recommend charge current: 20A
Maximum charge current: 70A
Recommend charge voltage:28.8V ~29.2V
Maximum batteries in series: 2PCs batteries.
Maximum continuous discharge current: 100A
Peak discharge current: 200A(3 seconds)
Recommend low voltage disconnect: 22.4V
BMS discharge cut-off voltage: Around 20.8V
Reconnect Voltage:>23.2V
Discharge temperature:-4°F~140°F
Charge temperature: 32°F~113°F
Recommend storage temperature:23°F~95°F
UL1973&IEC62619 for Battery cells.
