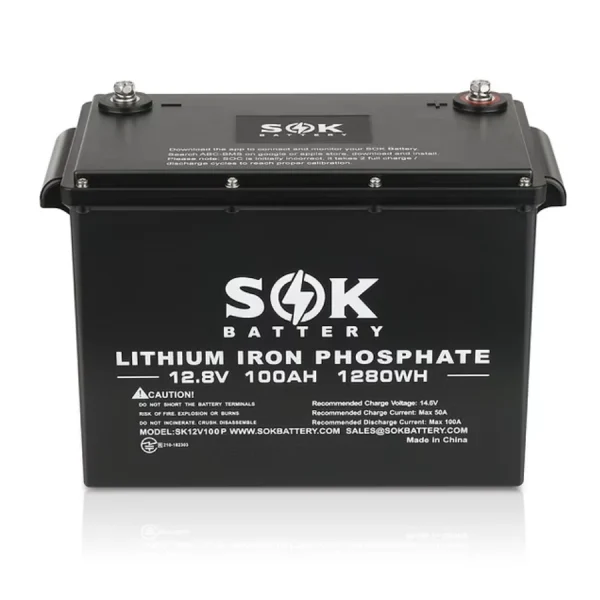

SOK Battery SK12V100P | Lithium Iron Phosphate 12V 100Ah ,Marine Grade
SK12V100P | 12V 100Ah LiFePO4 Battery is a marine-grade lithium solution with long-lasting performance and the latest V8 Bluetooth BMS. Featuring 4000–8000 cycle life, detachable cover with replaceable BMS or cells, and support for both series (up to 48V) and parallel connections. Built-in protections include low/high temperature cut-offs, overcharge, short circuit, and auto cell balancing. Ideal for RV, marine, and off-grid setups.
- 7 Years Warranty,4000~8000 Cycles Life Span,Free Maintenance.
- Detachable Cover,Replaceable BMS or Cells.
- Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.
- Built-in Smart Battery Management System.
- Low Temperature Charging Cut-off.
- High Temperature Charging or Discharging Cut-off.
- Over Charging or Discharging Protection.
- Over Current & Short Circuit Protection.
- Battery Cells Auto Balance.
- Notice for connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC)before they are connected.
Support connect in series and in parallel.
Could be mix used with SK12V100 or SK12V100H Metal box battery, Support connect them in parallel.
| Bluetooth | built-in Bluetooth BMS (V8 version), Yes |
|---|---|
| Built-in Heater | No (available in SK12V100H model) |
| CAN Communication | Not supported |
| Capacity | 100Ah |
| Certifications | UL1973 & IEC62619 (cell certifications) |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | 4000–8000 cycles |
| Dimensions | 12.83 x 6.69 x 8.58 inches (32.6 x 17 x 21.8 cm) |
| IP Rating | IP50 |
| Max Charge Current | 50A (recommended: 20A) |
| Max Discharge Current | 100A continuous |
| Operating Temperature | Charge: -4°F to 113°F (-20°C to 45°C); Discharge: -4°F to 140°F (-20°C to 60°C) |
| Parallel Connection | Up to 10 Batteries |
| Peak Discharge Current | 200A (3 seconds) |
| Series Connection | Up to 4 batteries (max 48V) |
| Voltage | Nominal: 12.8V; Charging: 14.6V |
| Warranty | 7 years |
| Weight | 24.7 lbs (11.2 kg) |
Recommended Charge Current 20 A
Maximum Charge Current 70 A
Recommended Charge Voltage 14.6 V
Maximum Continuous Discharge Current 170 A
Peak Discharge Current 200 A (3 s)
Recommended Low Voltage Disconnect 10.4V
Discharge Temperature -4 to 140 ºF
Charge Temperature -4 to 113 ºF
Storage Temperature 23 to 95 ºF
UL1973&IEC62619 for Battery cells.
