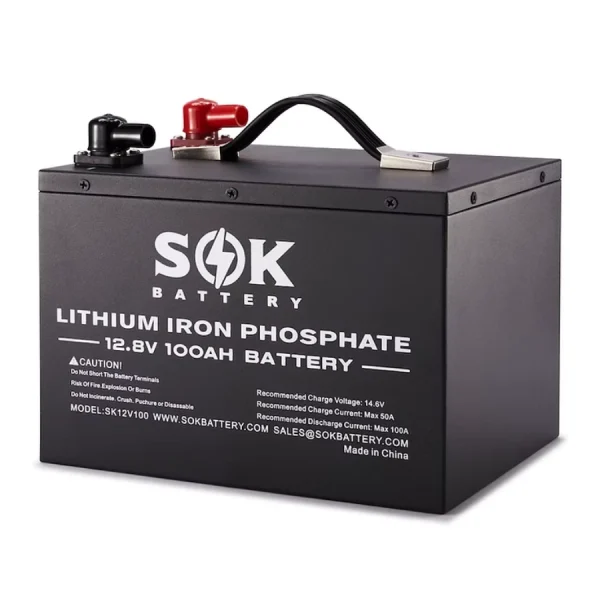

SOK Battery SK12V100H | 12V100Ah LiFePO4 Bluetooth&Built-in heater
SK12V100H | 12V 100Ah LiFePO4 Battery is designed for cold climates, featuring a built-in heater that allows charging down to –4°F (-20°C) without draining the battery. Equipped with the latest V8 Bluetooth BMS for real-time monitoring and advanced protection. Offers 4000–8000 cycle life, detachable cover, and replaceable cells. Supports parallel connection, smart BMS protection, and Bluetooth 4.0 connectivity for iOS/Android.
- 7 year warranty and maintenance free with a 4000-8000 cycles life span.
- Detachable cover with replaceable BMS and cells.
- Built-in heater pad for using in down to -4°F.
- Bluetooth4.0 , supprot IPhone or Android smartphone.
- Support connect in parallel for larger capacity.
- Built-in smart Battery Management System (BMS).
- Low temperature charging cut-off.
- High temperature charging or discharging cut-off.
- Over charging and discharging protection.
- Over current and short circuit protection.
- Battery cells auto balance.
- Please note for connecting in series:Â NOT OVER 4 Batteries IN SERIES, and make sure add the battery voltage balancer.
| Bluetooth | compatible with iOS & Android via ABC-BMS app), Yes (Bluetooth 4.0 |
|---|---|
| Built-in Heater | 60W internal heater, allows charging down to -20°C (-4°F), powered during charging, Yes |
| CAN Communication | Not specified |
| Capacity | 100Ah |
| Certifications | UL1973 and IEC62619 for internal cells |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 4000–8000 cycles at 80% Depth of Discharge (DoD) |
| Dimensions | 11.42 x 7.87 x 7.87 inches (approximately 290 x 200 x 200 mm) |
| IP Rating | IP50 |
| Max Charge Current | 50A (20A recommended) |
| Max Discharge Current | 100A |
| Operating Temperature | Charging: 0°C to 45°C (32°F to 113°F); Discharging: -20°C to 60°C (-4°F to 140°F) |
| Parallel Connection | Up to 10 Batteries |
| Peak Discharge Current | 200A for 3 seconds |
| Series Connection | Up to 4 batteries in series (max 48V system) |
| Voltage | Nominal: 12.8V; Charging: 14.4–14.6V |
| Warranty | 7 years |
| Weight | 26.4 lbs (approximately 12 kg) |
Recommended Charge Current   20 A
Maximum Charge Current   70 A
Recommended Charge Voltage   14.6 V
Maximum Continuous Discharge Current   170 A
Peak Discharge Current   200 A (3 s)
Recommended Low Voltage Disconnect   10.4V
Discharge Temperature   -4 to 140 ºF
Charge Temperature   -4 to 113 ºF
Storage Temperature   23 to 95 ºF
UL1973&IEC62619 for Battery cells.
